Solar Water Pumping System

Home > Infrastructure > Renewable Energy > Solar Water Pumping System

Products of Renewable Energy

Solar Water Pumping System:

Water your fields with the power from the Sun:

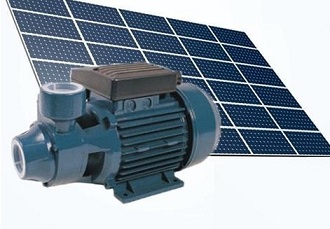

A solar water pump system is essentially an electrical pump system in which the electricity is provided by one or several Photo Voltaic (PV) panels. A typical solar powered pumping system consists of a solar panel array that powers an electric motor, which in turn powers a bore or surface pump.

With the cost of diesel and electricity rising constantly, solar powered water pumps are the perfect alternative for rural regions as these have a low maintenance cost and ensure a long product life.

How do solar water pumps help rural regions?

People from rural regions have to work additionally hard for water, especially due to the unpredictable nature of rain in the country. Our solar powered water pumps are a low cost solution enabling residents in these areas to spend more time increasing their income by growing crops etc., rather than ferrying water from far off distances.

The pumping systems are extremely rugged, maintenance free & do not need any other external source of power. DC power is generated at site itself and fed to the pump. They are ideally suitable for those areas where conventional grid supply is either erratic or non-existent. Also SPV pumps require only one-time investment with no recurring cost and have a long life.

REIL is one of the pioneer companies implementing projects of Solar PV Water Pumping Systems since 1996.

Benefits of Solar Water Pumps:

Rugged construction
Easy installation
No conventional grid electricity required
Long operating life
Highly reliable and durable
Easy to operate and maintain
Eco-friendly
No fuel Cost

Two types of Solar Water Pumps

Submersible pump

Surface pump

Features:

Low maintenance
Noiseless, no pollution
Long life
Low / no running cost

Advantages and applications:

Drinking water
Irrigation
Horticulture
Animal Husbandry
Poultry farming
High value crops
Orchard
Seri-culture
Aqua-culture
Farming
Battery charging & Lighting, when pump is not required for water lifting

Technical specification of solar water pumping system:

Description	Features	Components	Benefits	Specifications
REIL SOLAR 1 HP DC SUBMERSIBLE PUMP	IEC Certified Modules with 25 years warranty.	Solar Module 1200 Wp	Auto ON/OFF feature for utilizing maximum solar energy	Solar Module: 1200Wp
	Advance system safety protection like dry run, reverse polarity, low voltage	Pump Capacity 1HP	Ideal for areas with low or minimum grid power	Dynamic Pump Head: 30 m
	Corrosion resistant galvanized iron mounting structure for longer life, withstand wind speed of150 km/h	Galvanized Iron module mounting Structure Variable Frequency Drive Suitable accessories pipe, cable, rope, etc.	25 years warranty for the modules and 5 years warranty on pump and controller	Water Discharge: 42,000 LPD @ 30 m
REIL SOLAR 3 HP DC SUBMERSIBLE PUMP	IEC Certified Modules with 25 years warranty.	Solar Module 3000 Wp	Auto ON/OFF feature for utilizing maximum solar energy	Solar Module: 3000Wp
	Advance system safety protection like dry run, reverse polarity, low voltage	Pump Capacity 3HP	Ideal for areas with low or minimum grid power	Solar Module: 3000Wp
	Corrosion resistant galvanized iron mounting structure for longer life, withstand wind speed of150 km/h	Galvanized Iron module mounting Structure Variable Frequency Drive Suitable accessories pipe, cable, rope, etc.	25 years warranty for the modules and 5 years warranty on pump and controller	Water Discharge: 45000 LPD @ 70m
REIL SOLAR 5 HP DC SUBMERSIBLE PUMP	IEC Certified Modules with 25 years warranty.	Solar Module 4800 Wp	Auto ON/OFF feature for utilizing maximum solar energy	Solar Module: 4800Wp
	Advance system safety protection like dry run, reverse polarity, low voltage	Pump Capacity 5HP	Ideal for areas with low or minimum grid power	Dynamic Pump Head: 150 m
	Corrosions resistant galvanized iron mounting structure for longer life, withstand wind speed of150 km/h	Galvanized Iron module mounting Structure Variable Frequency Drive Suitable accessories pipe, cable, rope, etc.	25 years warranty for the modules and 5 years warranty on pump and controller	Water Discharge: 50400 LPD@ 100 m
REIL SOLAR 7.5 HP DC SUBMERSIBLE PUMP	IEC Certified Modules with 25 years warranty.	Solar Module 6750 Wp	Auto ON/OFF feature for utilizing maximum solar energy	Solar Module: 6750 Wp
	Advance system safety protection like dry run, reverse polarity, low voltage	Pump Capacity 7.5HP	Ideal for areas with low or minimum grid power	Dynamic Pump Head: 150 m
	Corrosion resistant galvanized iron mounting structure for longer life, withstand wind speed of150 km/h	Galvanized Iron module mounting Structure Variable Frequency Drive Suitable accessories pipe, cable, rope, etc.	25 years warranty for the modules and 5 years warranty on pump and controller	Water Discharge: 70875 LPD @ 100 m
REIL SOLAR 10 HP DC SUBMERSIBLE PUMP	IEC Certified Modules with 25 years warranty.	Solar Module 9000 Wp	Auto ON/OFF feature for utilizing maximum solar energy	Solar Module: 9000 Wp
	Advance system safety protection like dry run, reverse polarity, low voltage	Pump Capacity 10 HP	Ideal for areas with low or minimum grid power	Dynamic Pump Head: 150 m
	Corrosion resistant galvanized iron mounting structure for longer life, withstand wind speed of150 km/h	Galvanized Iron module mounting Structure Variable Frequency Drive Suitable accessories pipe, cable, rope, etc.	25 years warranty for the modules and 5 years warranty on pump and controller	Water Discharge: 94500 LPD @ 100 m

KUSUM SCHEME :

REIL has been installing the Solar PV Systems under the various components of KUSUM scheme well before the inception of scheme itself.

Under Component A, MW size plants are to be installed in the fields & REIL has experience of installing the first ever 5 MW Solar Plant in Phalodi, Rajasthan in the year 2012 in record 100 day time. In totality REIL has experience of installing 5 MW Size SPV Systems in PAN India.

REIL also played a very important role by installing the first ever Solar Water Pumps and interacted them with micro irrigation schemes in the state of Rajasthan in the year 2008-09. The success of the same had resulted into formulating of subsidy schemes by state / MNRE, thereby resulting into installation of lacs of Solar PV Pumps across the length & breath off the country, which presently lies under KUSUM Component 2.

REIL also played a vital role in implementation of first ever installation under KUSUM Component 3, in Mujkuva Village in Anand, Gujrath in the year 2017-18, with support from NDDB, Anand by coining SPICE (Solar Pump Irrigators Cooperative Enterprises) comprising of 11 farmers. The SPICE was inaugurated by Hon’ble Prime Minister of India on 30.09.2018.
